WaterStation

WaterStation is a self-contained power generation system that produces and stores energy via water electrolysis and hydrogen fuel cells.

Description
WaterStation

WaterStation is a self-contained power generation system that produces and stores energy via water electrolysis and hydrogen fuel cells.

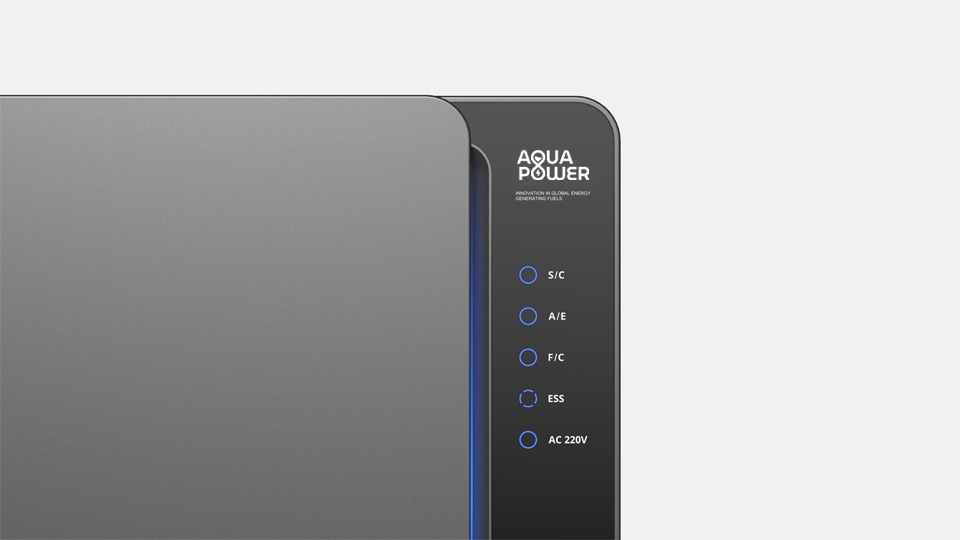

Control Panel
WaterStation

S/C (Solar Cell)

The energy source for driving the water electrolyzer is supplied from eco-friendly solar cells. The size of the solar cell may vary depending on the installation environment.

A/E (Alkaline Water Electrolysis)

Green Hydrogen is converted into electric energy as a raw material for fuel cells, and clean oxygen is discharged into the atmosphere.

F/C (Fuel Cell)

Electric energy is produced using green hydrogen produced through water electrolysis. The generated electrical energy is stored and utilized as an energy storage system.

ESS (Energy Storage System)

Electric energy produced from fuel cells and solar cells is stored in the energy storage system, and stable power is supplied through optimized energy management.

AC 220V (Output)

Electric energy stored in the energy storage system is stably supplied with 220V electricity through the DC-AC inverter.

Control Panel
WaterStation

S/C (Solar Cell)

The energy source for driving the water electrolyzer is supplied from eco-friendly solar cells. The size of the solar cell may vary depending on the installation environment.

A/E (Alkaline Water Electrolysis)

Green Hydrogen is converted into electric energy as a raw material for fuel cells, and clean oxygen is discharged into the atmosphere.

F/C (Fuel Cell)

Electric energy is produced using green hydrogen produced through water electrolysis. The generated electrical energy is stored and utilized as an energy storage system.

ESS (Energy Storage System)

Electric energy produced from fuel cells and solar cells is stored in the energy storage system, and stable power is supplied through optimized energy management.

AC 220V (Output)

Electric energy stored in the energy storage system is stably supplied with 220V electricity through the DC-AC inverter.

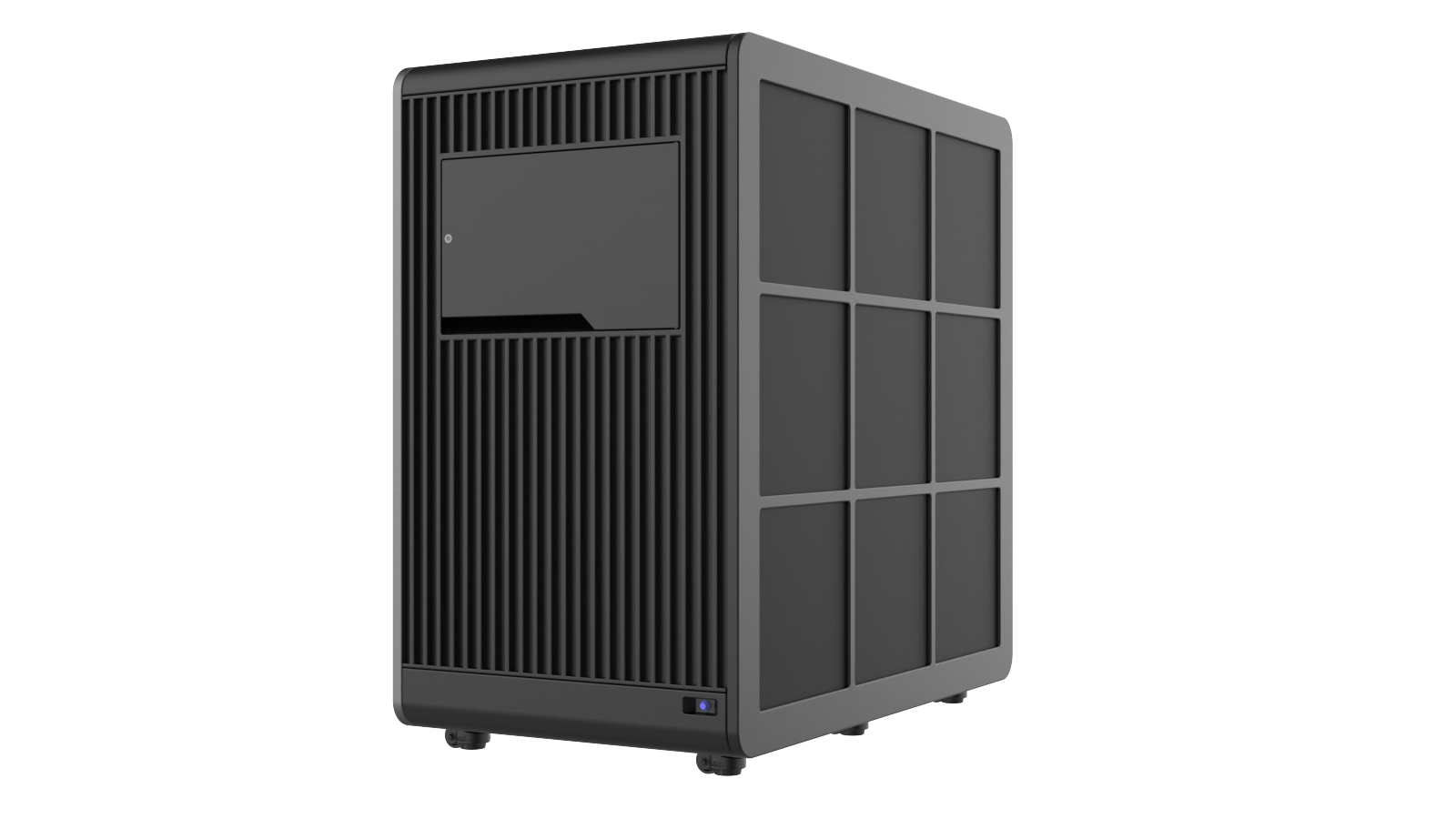

View WaterStation

High-capacity power generation through deposition

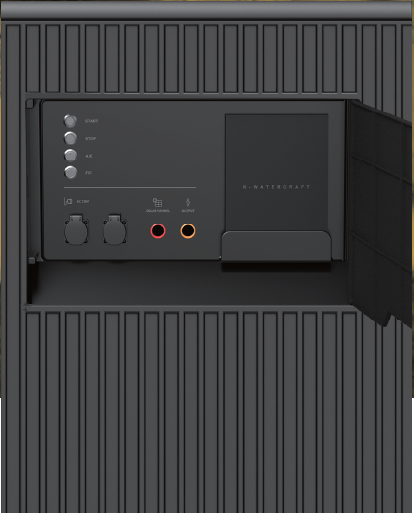

Front
Control Panel

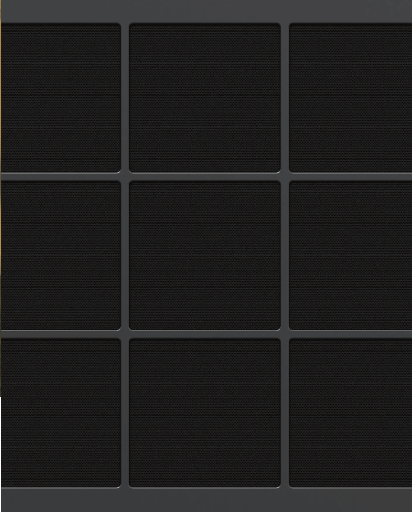

Side
Mesh Material

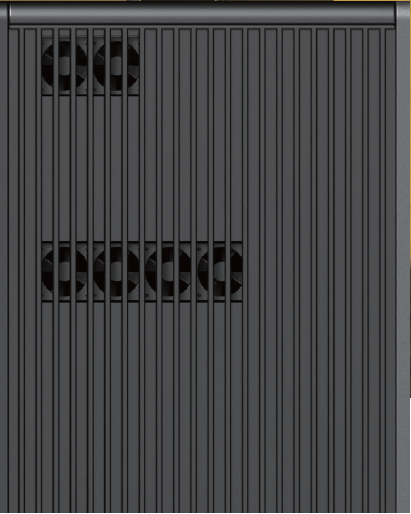

Back
Cooling Fan

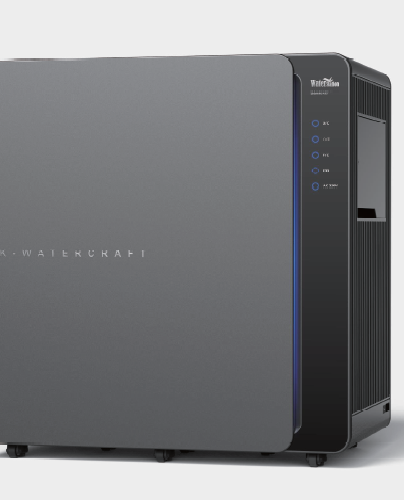

LED
For intuitively grasp

Outlet for Water
For land disspation

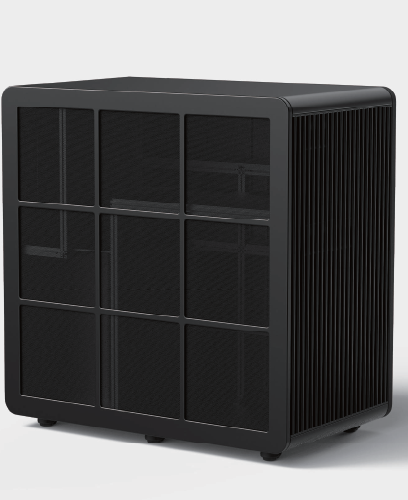

Mesh
For heat disspation

View
WaterStation

High-capacity power generation through deposition

Front
Control Panel

Side
Mesh Material

Back
Cooling Fan

LED
For intuitively grasp

Outlet for Water
For land disspation

Mesh
For heat disspation

Technical Specification
WaterStation

Mechanical
Product	WaterStation
Size	1,700(w)×2,000(d)×1,700(h) mm
Weight	550 kg
Specificity	Water(Hydrogen) Powered Generator
Fuel Cell Output	10 kW
Durability	20yrs (Warranty : fuel cell electrode 7yrs, water electrolytic electrode 10yrs)

Environmental
Operational Temperature Range	-10℃ ~ +50℃
Recommended Temperature Range	5℃ ~ 45℃
Environmental Humidity Range	3~100 % RH
Maximum Elevation	2,000 m
Noise Level	< 60 dB
Enclosure Protection Rating	IP54

HEAT RESISTANCE
Operational in conditions
-10℃ to +50℃

MADE IN KOREA
Design and product
development Localization

RENEWABLE ENERGY
Eco-friendly green hydrogen
energy production

Technical Specification
WaterStation

Mechanical
Product	WaterStation
Size	1,700(w)×2,000(d)×1,700(h) mm
Weight	550 kg
Specificity	Water(Hydrogen) Powered Generator
Fuel Cell Output	10 kW
Durability	20yrs (Warranty : fuel cell electrode 7yrs, water electrolytic electrode 10yrs)

Environmental
Operational Temperature Range	-10℃ ~ +50℃
Recommended Temperature Range	5℃ ~ 45℃
Environmental Humidity Range	3~100 % RH
Maximum Elevation	2,000 m
Noise Level	< 60 dB
Enclosure Protection Rating	IP54

HEAT RESISTANCE
Operational in conditions
-10℃ to +50℃

MADE IN KOREA
Design and product
development Localization

RENEWABLE ENERGY
Eco-friendly green hydrogen
energy production

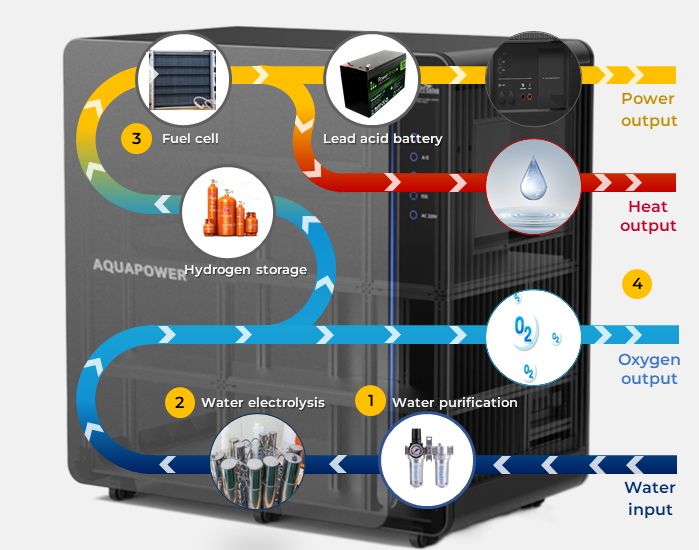

System
WaterStation

Water purification system
· Water quality secure through advanced purification treatment
· Supply drinkable water if wanted

Green hydrogen production and storage
· Alkaline water electrolysis system driving power supply through solar cells
· Hydrogen storage through purification

Energy production and utilization
· Energy production through PEMFC fuel cell
· Energy produced is stored in a battery and used for power generation

Utilization of heat water and oxygen
· 60℃ water production through PEMFC fuel cell(over 10kW)
· Oxygen production through water electrolysis system

System
WaterStation

Water purification system
· Water quality secure through advanced purification treatment
· Supply drinkable water if wanted

Green hydrogen production and storage
· Alkaline water electrolysis system driving power supply through solar cells
· Hydrogen storage through purification

Energy production and utilization
· Energy production through PEMFC fuel cell
· Energy produced is stored in a battery and used for power generation

Utilization of heat water and oxygen
· 60℃ water production through PEMFC fuel cell(over 10kW)
· Oxygen production through water electrolysis system

ENJOY THE FUTURE WITH
GREEN ENERGY

Energy is Everywhere

WaterStation uses water as a fuel source, there is no cost burden on fuel and has a virtuous cycle of power generation structure which uses truly ecological fuel to produce eco-friendly energy.
In addition, WaterStation can be customized for each electric capacity, so it is possible to install a self-contained energy system (zero-energy building) in an area with infrastructure suiting customers’ needs. It can also be installed independently in islands, mountains, and uninhabited islands without costly infrastructure. Recognized for its unique value in eco-friendly energy production.

ENJOY THE FUTURE WITH
GREEN ENERGY

Energy is Everywhere

WaterStation uses water as a fuel source, there is no cost burden on fuel and has a virtuous cycle of power generation structure which uses truly ecological fuel to produce eco-friendly energy.
In addition, WaterStation can be customized for each electric capacity, so it is possible to install a self-contained energy system (zero-energy building) in an area with infrastructure suiting customers’ needs. It can also be installed independently in islands, mountains, and uninhabited islands without costly infrastructure. Recognized for its unique value in eco-friendly energy production.
